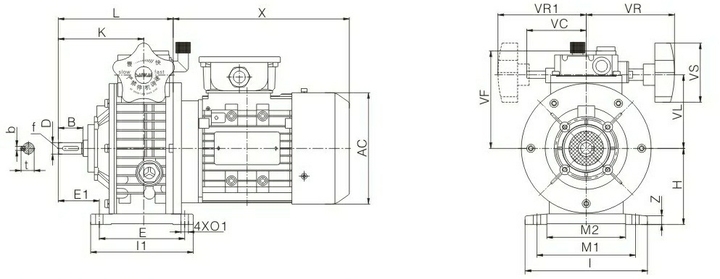

卧式无段变速机
型号:TYPE |
B |
D(j6) |
E |
M |
E1 |
M1 |
H |
I |
I1 |
K |
L |
O1 |
VC |
VF |
VL |
VR |
VR1 |
VS |
b |
t |
x |
AC |
Z |
UDL002B3-0.18KW |
23 |
11 |
105 |
110 |
80 |
71 |
80 |
145 |
120 |
87.5 |
135.5 |
9 |
71 |
111 |
78 |
110 |
110 |
85 |
4 |
12.5 |
194 |
120 |
10 |
UDL005B3-0.25KW |
30 |
14 |
104 |
120 |
93 |
96 |
93 |
149 |
125 |
104 |
140 |
9 |
71 |
123 |
90 |
110 |
110 |
85 |
5 |
16 |
215 |
136 |
10 |
UDL005B3-0.37KW |
30 |
14 |
104 |
120 |
93 |
96 |
93 |
149 |
125 |
104 |
140 |
9 |
71 |
123 |
90 |
110 |
110 |
85 |
5 |
16 |
215 |
136 |
10 |
UDL010B3-0.55KW |
40 |
19 |
125 |
160 |
113 |
135 |
113 |
190 |
150 |
125.5 |
179 |
11 |
79 |
140 |
107 |
120 |
120 |
110 |
6 |
21.5 |
247 |
155 |
15 |
UDL010B3-0.75KW |
40 |
19 |
125 |
160 |
113 |
135 |
113 |
190 |
150 |
125.5 |
179 |
11 |
79 |
140 |
107 |
120 |
120 |
110 |
6 |
21.5 |
260 |
155 |
15 |
UDL020B3-1.1KW |
50 |
24 |
140 |
180 |
123 |
143 |
123 |
241 |
150 |
165 |
238 |
12 |
- |
144 |
122 |
150 |
- |
110 |
8 |
27 |
285 |
175 |
18 |
UDL020B3-1.5KW |
50 |
24 |
140 |
180 |
123 |
143 |
123 |
241 |
150 |
165 |
238 |
12 |
- |
144 |
122 |
150 |
- |
110 |
8 |
27 |
285 |
175 |
18 |
UDL030B3-2.2KW |
60 |
28 |
230 |
245 |
150 |
190 |
150 |
300 |
270 |
191 |
268 |
14 |
- |
188 |
150 |
160 |
- |
110 |
8 |
31 |
323 |
195 |
25 |
详细扭力性能参数请至资料下载中心下载
